Systor 1-7 SATA & M.2 NVMe Duplicator Sanitizer 18GB/Min - Supports PCIe, HDD & SSD (SYSNVME-XW307)


Systor 1-7 SATA & M.2 NVMe Duplicator Sanitizer 18GB/Min - Supports PCIe, HDD & SSD (SYSNVME-XW307)
    Price: $9,000.00

    Quantity in Basket: None

    Code: SYSNVME-XW307


    Quantity:


    * LEAD TIME: 12-17 BUSINESS DAYS

    DESCRIPTION

    Systor M.2 NVMe PCIe/SATA SSD/HDD duplicators are completely standalone units that can clone or sanitize a number of different media types. Easily insert and copy (or erase) M.2 or SATA solid state SSD drives or HDD hard disk drives with a single touch of a button. These duplicators consistently perform copy sessions with no speed degradation even when the number of target devices increase. Various copying and erasing modes help in managing different task requirements for duplicating and wiping your storage media.These high-speed, high-performance M2 copiers are the perfect solution for business (small to enterprise), education, and government entities (military, law enforcement, etc.) where copying and erasing device data needs to be accomplished with precision and minimal time.

    * Duplication speed will vary depending on read/write transfer rates of master (source) and target (blank) drives.

    FLEXIBLE CROSS INTERFACE DUPLICATION

    Automatically detect NVMe and/or SATA signals to easily copy devices from one interface to another, such as:
    • M.2 (SATA) to M.2 (NVMe)
    • M.2 (NVMe) to HDD/SSD (SATA)
    • HDD/SSD (SATA) to M.2 (NVMe)
    • HDD/SSD (SATA) to HDD/SSD (SATA)

    M.2
PCIe NVMe duplication SATA SSD interface types



    SUPPORTED DEVICES
    • NVMe M.2
    • SATA M.2
    • SATA 3.5" HDD
    • SATA 2.5" HDD
    • SATA 2.5" SSD

    M.2 PCIe NVMe duplicator SATA HDD SSD supported
devices



    AUTOMATIC REJECTION OF SLOW DEVICES

    Users can set the duplicator's minimum writing speed threshold to prevent/eliminate problematic devices that slow down the duplication and sanitization process.

    M.2 PCIe NVMe duplicator auto reject slow SSD
drives

    INTELLIGENT DUPLICATION
    (COPY MODES)
    M.2 PCIe NVMe duplicator copy
System Files only from source to target media

    M.2 PCIe NVMe duplicator copy all
partitions from source to target media
    Systems and Files
    (Quick Copy Mode):

    Copies only the data area and skips empty space, reducing the copy duration time.


    All Partitions:
    Can be set to copy or skip HPA, DCO, unknown partitions, modified formats, etc.

    M.2 PCIe NVMe
duplicator copy bit by bit sector by sector from source
to target media

    M.2 PCIe NVMe duplicator
copy only a percentage of the source to target media
    Whole Media:
    Copies from the initial sector to the end, bit-by-bit. There are no format limitations in this mode. Supports all systems and proprietary formats, along with various brands.


    Percentage Copy:
    Set a selected percentage of source/master capacity to copy.

    SKIP BAD SECTORS

    Select the numbers of bad sectors to skip from the source drive (ranging from 0 to unlimited) during copy, compare, or erase functions.

    SANITIZATION METHODS
    (ERASE MODES)

    Duplicator erase mode: Quick fast
erase

    Duplicator erase mode: Full
complete erase
    Quick Erase:
    Erases the device's index table, and only takes a few seconds to complete.


    Full Erase:
    Erases the entire device

    Duplicator erase mode: DoD
5220.22-M standards

    Duplicator erase mode: NIST
800-88 standards
    DoD Erase:
    Complies with the erasure standards of the U.S. Department of Defense
    (DoD) 5220.22-M.


    Secure Erase:
    Complies with standards of the National Institute of Standards and Technology
    (NIST) 800-88.

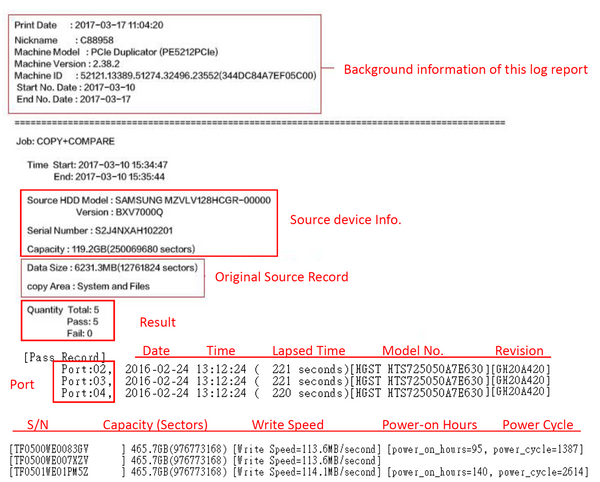

    COMPARE FUNCTION + CRC CHECKSUM

    Performs bit-by-bit cyclic redundancy check (CRC) to ensure copies are identical for every duplication session.
    CRC checksum bit by bit comparison



    SPECIFICATIONS



    PRODUCT FEATURES

    Features
    Descriptions
    Operation Type
    • Stand-alone, FPGA-based design (no PC required)
    Controller Design
    • Embedded controller is designed to support capacities over 18TB+.
    • Constant improvement supports latest market-available devices.
    Devices Supported
    • Automatically detect NVMe and/or SATA signals to easily copy devices from one interface to another, such as:
      • M.2 (SATA) to M.2 (NVMe)
      • M.2 (NVMe) to HDD/SSD (SATA)
      • HDD/SSD (SATA) to M.2 (NVMe)
      • HDD/SSD (SATA) to HDD/SSD (SATA)
    Hot Swap Supported
    • Supports hot swapping of devices.
    Bandwidth Performance
    • Peak transfer speeds up to 18GB/min. (300MB/sec.)
    • Actual performance is dependent on media transfer speeds.
    • Dedicated bandwidth enables high-volume replications without speed degradation.
    Read-Only Or Eraseable Source Port
    • Built-in feature. Enables/disables source media to be erased/sanitized during erase process.
    Modular Port Design
    • Replace ports easily to reduce downtime and for cost-effective long-term usage.



    PRODUCT FUNCTIONS

    Features
    Descriptions
    Copy Modes
    • System and Files (Quick Copy Mode):
      Copies data and skips empty space. Only supports Windows, Mac, and Linux.
    • All Partitions:
      Set to copy or skip HPA, DCO, unknown partitions, modified formats, etc.
    • Whole Media:
      Copies from the initial sector to the end, bit-by-bit. No format limitations. Supports all systems and proprietary formats, along with various brands.
    • Percentage Copy:
      Set a selected percentage of source/master capacity to copy.
    Compare (Verification)
    • Performs bit-by-bit cyclic redundancy check (CRC) to ensure copies are identical for every duplication session.
    Sanitization Modes
    • Quick Erase:
      Erases device index table.
    • Full Erase:
      Erases entire device(s), in compliance with the NIST 800-88 standard.
    • DoD Erase:
      Erases entire device(s), in compliance with the DoD 5220.22-M standard.
    • DoD EraseComp:
      Erases entire device(s) and verifies complete erasure, in compliance with the DoD 5220.22-M standard.
    • Secure Erase:
      Erases non-loadable areas, in compliance with the NIST 800-88 standard.
    Skip Bad Sectors
    • Set number of bad sectors to skip during Copy/Compare/Erase.



    PRODUCT COMPATIBILITIES

    Compatibilities
    Descriptions
    Compatible Devices
    • NGFF (M.2): 2230, 2242, 2260, 2280, 3030, 3042, 3060, and 3080.
    • Supports B+M Key or M Key only
    • mSATA
    • SATA HDD/SSD
    Supported Formats
    • Quick Copy Function: FAT16/32/64, Windows (NTFS), Linux (Ext2/Ext3/Ext4), and Mac (HFS, HFS+, HFSX).
    • Whole Device Copy Function: All Formats, including proprietary formats.
    • GPT, MBR, and Advanced Formats.
    Supported O/S
    • All (Windows, Mac, Linux, and other proprietary systems).



    PRODUCT SPECIFICATIONS

    Specifications
    Descriptions
    LCD Display
    • Backlit Monochrome LCD Display
    LEDs
    • 3 LED Indicators per Port:
    • Yellow (Power), Green (Pass), and Red (Fail)
    Control Panel
    • 4 Push Buttons (▲, ▼, OK, ESC)
    Power Requirements
    • AC 100~240 V
    Operational Temperature
    • 0°C ~ 60°C (32°F ~ 140°F)
    Non-operational Temperature
    • -20°C ~85°C (-4°F ~ 185°F)
    Humidity
    • Operating: 20% ~ 80%, non-condensing
    • Non-operating: 5% ~ 95%, non-condensing
    Packaging Dimensions (L×W×H)
    • 24 in. x 18 in. x 16 in.
    Product Weight
    • 19.4 lbs.
    Certifications
    • FCC, CE, and RoHS
    ISO/IEC
    • 27037, 27041, 27042, 27043, and 27050

    * Specifications are subject to change without notice.
